Sunday, February 8, 2009

Creating ICEfaces Template

Basically, we need template to enable you to change once and apply to all the pages. Template is very useful for easier and better maintenance of your web site. For example, you don't want to change your web site name or description very often. However, when you want to change, you don't want to change in every single pages of your more than 100 pages web site. Moreover, the consistency of your web site look-and-feel is also the good impression for your visitors. Using template will help you control of the consistency of your web site styles, menus and so on.

So, this post will help you create a simple template using ICEfaces tags. Follow the steps below to create your own template easily and quickly as 123, 1) Creating folder structure, 2) Preparing styles and 3) Creating and applying template files

1) Creating folder structure

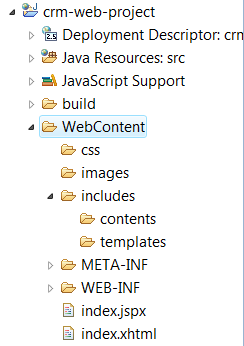

Create the folders similar to the structure shown in firgure in WebContent folder of your project, crm-web-project. Each folder description is explained as below:

css for all the styles
images for all the images, you may need other sub folders like icons and logo to organize your icons and company related images
includes for all the jspx files used in every pages. The pages will be kept right under WebContent folder
    contents for all the page contents which can be forms, table, tree or others
    templates for all the templates file such as header, footer, main template, and etc.



2) Preparing styles
Before creating templates, we'll copy the ICEfaces styles and icons from component-suite project to our project first. You may use your own styles if you had one already.
  1. Go to [ICEface installed]\samples\component-showcase\common-web\css to [crm-web-project]\WebContent\WEB-INF\css
  2. Copy three css files: showcase_layout.css, showcase_overrrides.css and showcase_styles.css and also the images folder
  3. Paste all the files to your project css folder
3) Creating and applying template files
Now, we've got read-made styles and icons. Then, we gotta create our own templates which are header, footer, default-template jspx files.

1. Create default-template.jspx file under templates folder using New JSP File Wizard, explained in previous post "Creating New JSPX File".
2. Add styles called, the following code, before </head> tag.

  <link rel='stylesheet' type='text/css' href='../css/showcase_style.css' />
  <link rel='stylesheet' type='text/css' href='../css/showcase_overrides.css' />
  <link rel='stylesheet' type='text/css' href='../css/showcase_layout.css' />

3. Replace the <title> </title> tags with the following code which will use the specific title defined by applied pages

<title>#{pageTitle}</title>

4. Add header and footer to template, the following code, overwrite the existing default contents which is after <body> and before </body> tags.

  <!-- header start -->
       <ui:insert name="header">
            <ui:include src="/includes/templates/header.jspx" />
        </ui:insert>
   <!-- header end -->
   <!-- body start -->
     <div class="body_container">
            <div class="body_content">
               <div class="contentContainer">
                    <!--
                       Main Component content;
                       controls which content to display for the respective navigation
                    -->
                       <ui:insert name="page-content"/>
                </div>
            </div>
        </div>
    <!-- body end -->
    <!-- footer start -->
         <ui:insert name="footer">
            <ui:include src="/includes/templates/footer.jspx"/>
          </ui:insert>


5. Create header.jspx file with the following code which creates the table with page menus: Home, Register, Login

<div xmlns="http://www.w3.org/1999/xhtml"
     xmlns:ice="http://www.icesoft.com/icefaces/component">
   <div class="header_container">
        <div class="header_content">
               <table width="100%" height="85px" cellpadding="5" cellspacing="0">
               <tr>
               <td  class="subMenu" align="right" valign="bottom">
                           <a href="#" class="linkSubMenu" >
                          <ice:outputText value="Home" />
                          </a> &nbsp; | &nbsp;
                          <a href="#" class="linkSubMenu" >
                              <ice:outputText value="Register" styleClass="linkSubMenu" />
                          </a> &nbsp; | &nbsp;
                          <a href="#" class="linkSubMenu" >
                              <ice:outputText value="Login" styleClass="linkSubMenu" />
                          </a>
                </td>
                </tr>
              </table>
      </div>
    </div>
</div>

6. Create footer.jspx file with the following code which creates page footer with copyright information

<div xmlns="http://www.w3.org/1999/xhtml"
     xmlns:ice="http://www.icesoft.com/icefaces/component">
<div class="footer_container">
    <div class="footer_content">
        <div style="width:400px">
            <a href="http://icefaces-tutorial.blogspot.com/" target="_blank">
            Copyright&#169; 1998-2008 ICEfaces Tutorial .
            </a>
        </div>
        <div style="float:right;width:250px;"><i>Powered By
            <a href="http://icefaces-tutorial.blogspot.com/" target="_blank">ICEfaces Tutorial</a></i>
        </div>
    </div>
</div>
</div>

7. Modify the index.jspx file with the following code which apply the default template and define the page contents

<ui:composition
        template="/includes/templates/default-template.jspx"
        xmlns:h="http://java.sun.com/jsf/html"
        xmlns:f="http://java.sun.com/jsf/core"
        xmlns:c="http://java.sun.com/jstl/core"
        xmlns:ice="http://www.icesoft.com/icefaces/component"
        xmlns:ui="http://java.sun.com/jsf/facelets" >

  <!-- params for page titles-->
        <ui:param name="pageTitle" value="ICEfaces Tutorial Home" />
  <!-- page content start  -->
    <ui:define name="page-content">
          <ice:outputText value="Welcome to ICEfaces Tutorial." />
    </ui:define>
  <!-- page content end -->
</ui:composition>


8. Add the following styles to showcase_style.css for additional link style for your menu.

/* Sub Menu Class */
.subMenu { color:#293D6B;
    FONT-FAMILY: Verdana, Arial;
    FONT-SIZE: 11px;
    FONT-WEIGHT:bold;
      text-decoration:none;
    text-align:right;
    vertical-align:middle;
    }
a.linkSubMenu:link    {
    color:#293D6B;
    FONT-FAMILY: Verdana, Arial;
    FONT-SIZE: 11px;
    FONT-WEIGHT:bold;
    text-decoration:underline; }
a.linkSubMenu:visited { color:#293D6B;
    FONT-FAMILY: Verdana, Arial;
    FONT-SIZE: 11px;
    FONT-WEIGHT: bold;
    text-decoration:underline; }
a.linkSubMenu:active  { color:#293D6B;
    FONT-FAMILY: Verdana, Arial;
    FONT-SIZE: 11px;
    FONT-WEIGHT: bold;
    text-decoration:underline; }
a.linkSubMenu:hover   { color:#293D6B;
    FONT-FAMILY: Verdana, Arial;
    FONT-SIZE: 11px;
    FONT-WEIGHT: bold;
    text-decoration:underline; }

9. Save all the files, then Export as WAR file and deploy to your tomcat as explained in previou post, "Configuring and Deploying Web Application".

Ok.. now, open your web site from browser and you will see the nice welcome page with cool styles.!!!

Saturday, February 7, 2009

Configuring and Deploying Web Application

After creating index.jspx, we've to create welcome page, so called index.xhtml, and add this welcome page to web configuration and redirect to index.jspx using ICEface Servlet.

1. Create index.xhtml file in the same folder where you created index.jspx
2. Enter the following code to index.xhtml

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">

<head>
<meta http-equiv="Refresh" content="0; URL=index.iface" />
</head>

</html>


2. overwrite web.xml file, which is under WEB-INF folder, with the following code:

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" id="WebApp_ID" version="2.5">
<display-name>ICEfaces Tutorial: Timezone Part 1</display-name>
<description>
ICEfaces Tutorial: CRM System
Customer Relationship Management Web Application
</description>
<!-- Session timeout -->
<session-config>
<session-timeout>30</session-timeout>
</session-config>

<context-param>
<param-name>javax.faces.STATE_SAVING_METHOD</param-name>
<param-value>server</param-value>
</context-param>

<context-param>
<param-name>javax.faces.DEFAULT_SUFFIX</param-name>
<param-value>.jspx</param-value>
</context-param>

<context-param>
<param-name>facelets.DEVELOPMENT</param-name>
<param-value>true</param-value>
</context-param>

<!-- Faces Servlet -->
<servlet>
<servlet-name>Faces Servlet</servlet-name>
<servlet-class>javax.faces.webapp.FacesServlet</servlet-class>
<load-on-startup>1</load-on-startup>
</servlet>

<!-- Persistent Faces Servlet -->
<servlet>
<servlet-name>Persistent Faces Servlet</servlet-name>
<servlet-class>com.icesoft.faces.webapp.xmlhttp.PersistentFacesServlet</servlet-class>
<load-on-startup>1</load-on-startup>
</servlet>

<!-- Blocking Servlet -->
<servlet>
<servlet-name>Blocking Servlet</servlet-name>
<servlet-class>com.icesoft.faces.webapp.xmlhttp.BlockingServlet</servlet-class>
<load-on-startup>1</load-on-startup>
</servlet>

<!-- Persistent Faces Servlet Mappings -->
<servlet-mapping>
<servlet-name>Persistent Faces Servlet</servlet-name>
<url-pattern>/xmlhttp/*</url-pattern>
</servlet-mapping>

<servlet-mapping>
<servlet-name>Persistent Faces Servlet</servlet-name>
<url-pattern>*.iface</url-pattern>
</servlet-mapping>

<!-- Blocking Servlet Mapping -->
<servlet-mapping>
<servlet-name>Blocking Servlet</servlet-name>
<url-pattern>/block/*</url-pattern>
</servlet-mapping>
<!-- Welcome File List -->
<welcome-file-list>
<welcome-file>index.xhtml</welcome-file>
</welcome-file-list>
</web-app>


3. Copy the following libs, jar files, from [ICEface installed]\lib to [crm-web-project]\WebContent\WEB-INF\lib

  • backport-util-concurrent.jar
  • commons-beanutils.jar
  • commons-collections.jar
  • commons-digester.jar
  • commons-discovery.jar
  • commons-el.jar
  • commons-fileupload.jar
  • commons-logging.jar
  • el-ri.jar
  • icefaces-comps.jar
  • icefaces-facelets.jar
  • icefaces.jar
  • jsf-api-1.2.jar
  • jsf-impl-1.2.jar
  • jstl.jar
  • krysalis-jCharts-1.0.0-alpha-1.jar
4. Right-click on the crm-web-project, select Export-> WAR file from pop-up menu as shown in figure:



5. Select your [Tomcat installed directory]\webapps folder as Destination as shown in figure:
6. Select Overwrite existing file to overwite next time when you export war file again



7. Click Finish to complate war file generation
8. Start Tomcat 6.0, (Restart if already sarted)
9. Then connect your web application using browser and url:http://localhost:8080/crm-web-project/index.iface
10. Congradulation! You've successfully created ICEface application. You'll see the first line of "
Tank you for using ICEfaces." in your browser.

In next post, we'll start working on the style and ICEface UI Components.
